DC5V WS2812B Individually Addressable Smart 5050SMD RGB LED Strip WS2812 30/60/74/96/144Leds/Pixels/m Magic Light IP30/65/67

900.00 RSD

~~0.00 RSD~~ 900.00 RSD

Sale Sold out

Taxes included.

Quantity

SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: Xnbada

Certification: CCC,ce,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): 3000-6500K

Hign-concerned Chemical: None

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2812B WS2812

Occasion: LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74/96/144

Strip type: SMD

Voltage: DC5V

Waterproof: Yes

semi_Choice: yes

Packing list：

1X Led strip(Without power or led controller)

Pay Attention

(Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2. WS2812B Led strip can be cut buy every "one" led chip!

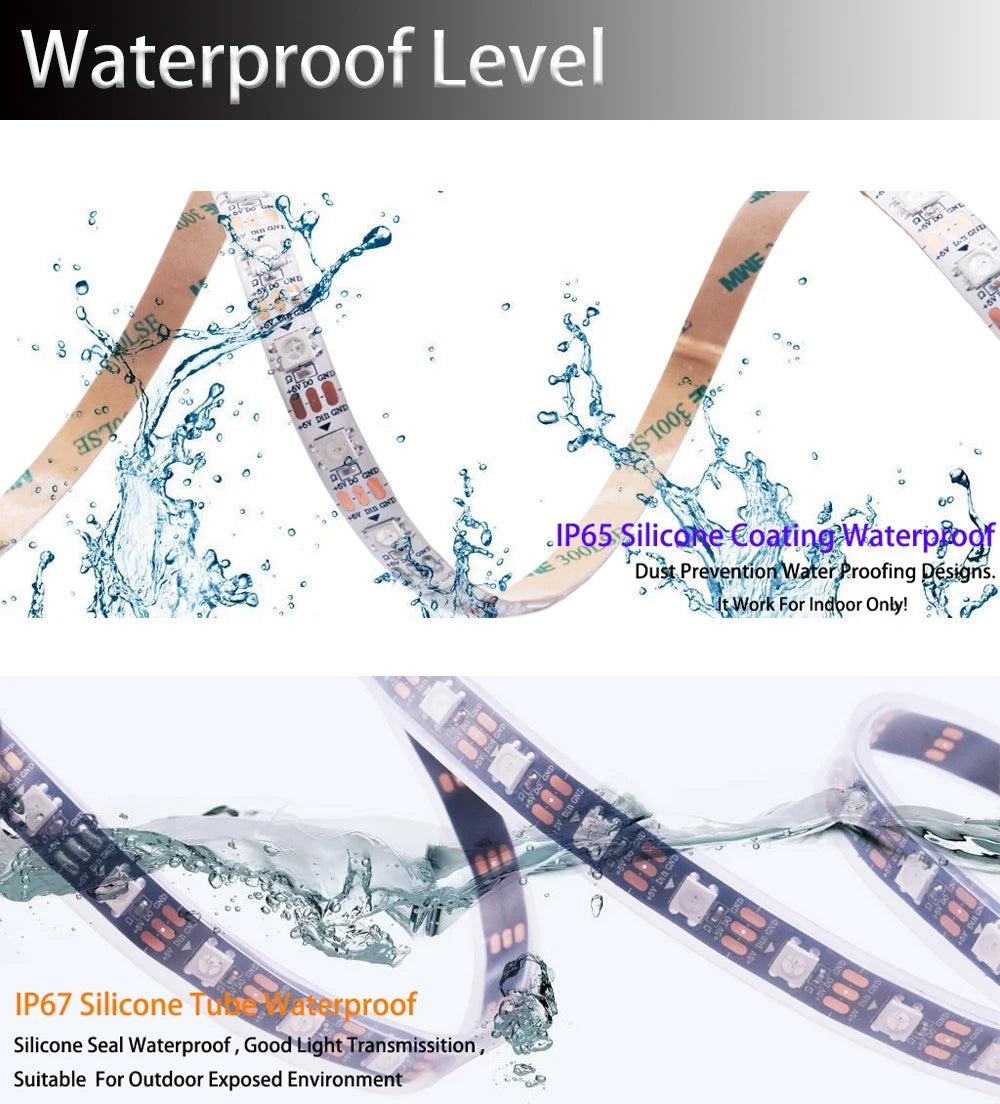

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

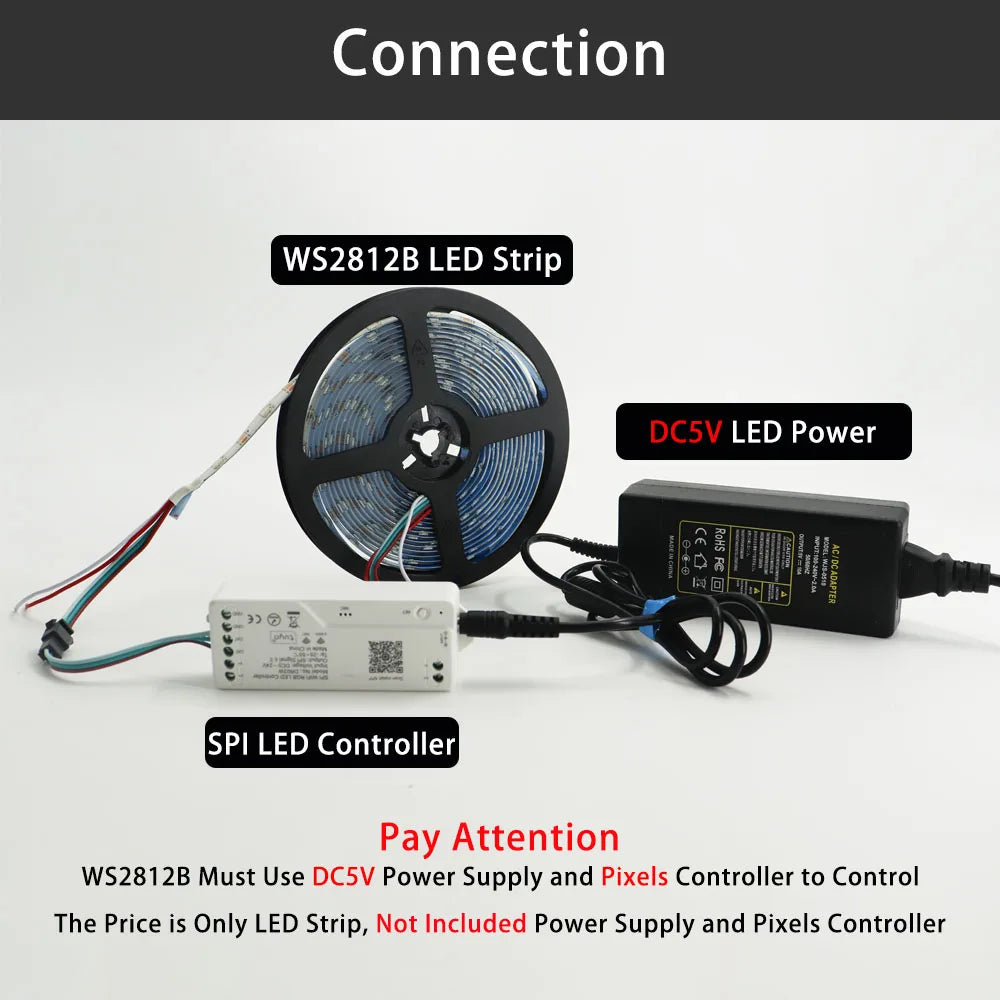

4. WS2812B Led Strip Work With DC5V Led Power Supply,And it must need a WS2812B Led Controller Control it.

Let's Know how to Choose Led Power

Calculated The Whole Led Strip Watts:

1.One Led Chip is About 0.2W,If You Buy is 5m 30Leds/m(Total Led Strip is 150Leds) ,So 0.2W*150=30W

2.And This Led Strip Work 5V,So 30W / 5V=6A,We Know This Led Strip Better at Least 6A......

Product Decsription:

1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By A Single Data Line From A Suitable Controller (Not Included).

2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.

3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.

4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.

5. Do Not Bend Strip Sharply.

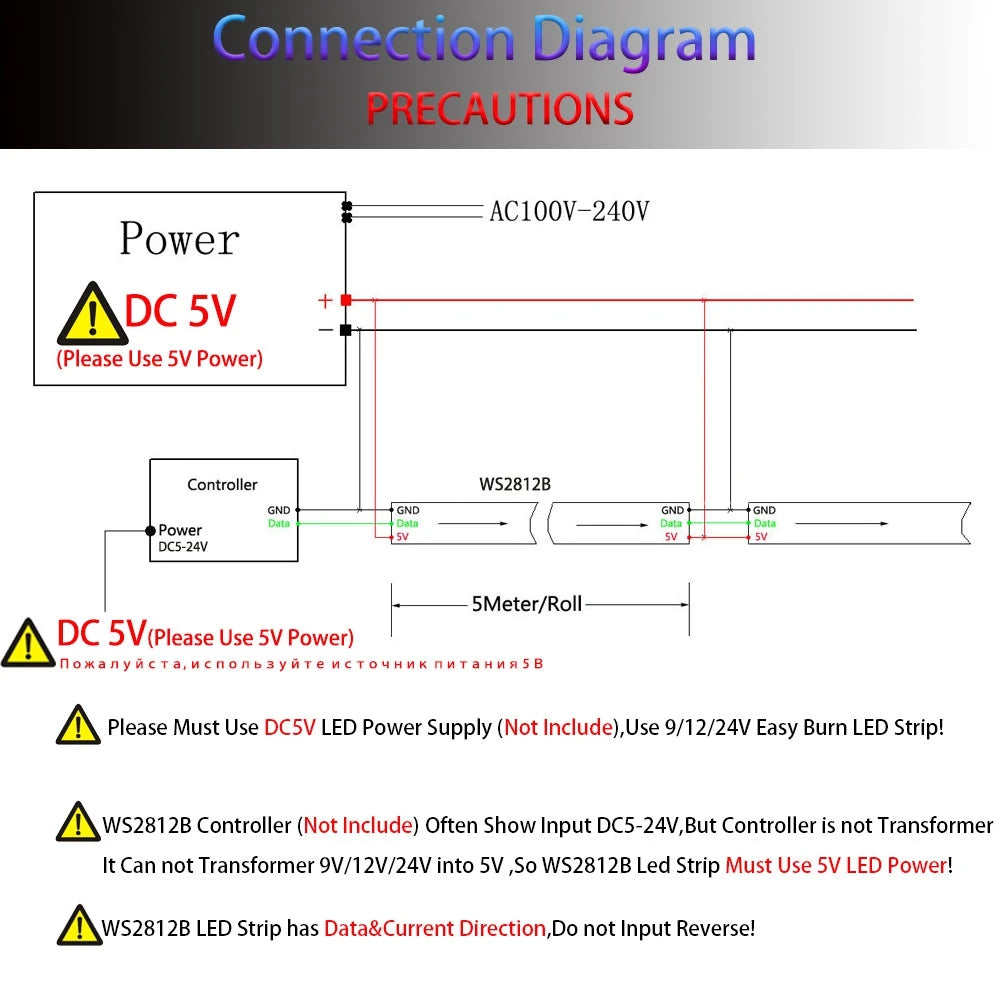

6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.

7. 3-Pin JST Connector Wire is 20AWG.

Products Application:

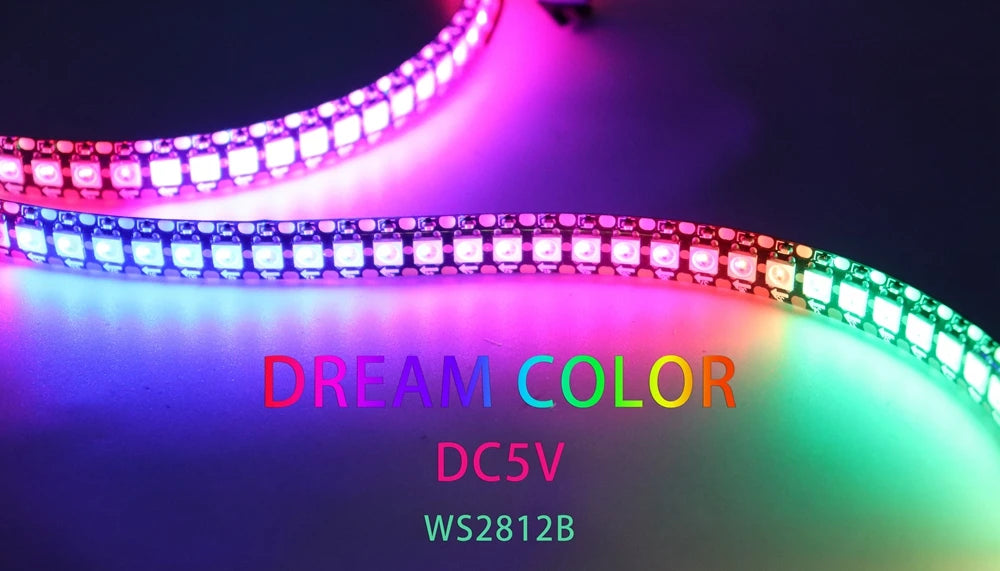

WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.

Product Details:

Input Voltage: DC5V

Power:

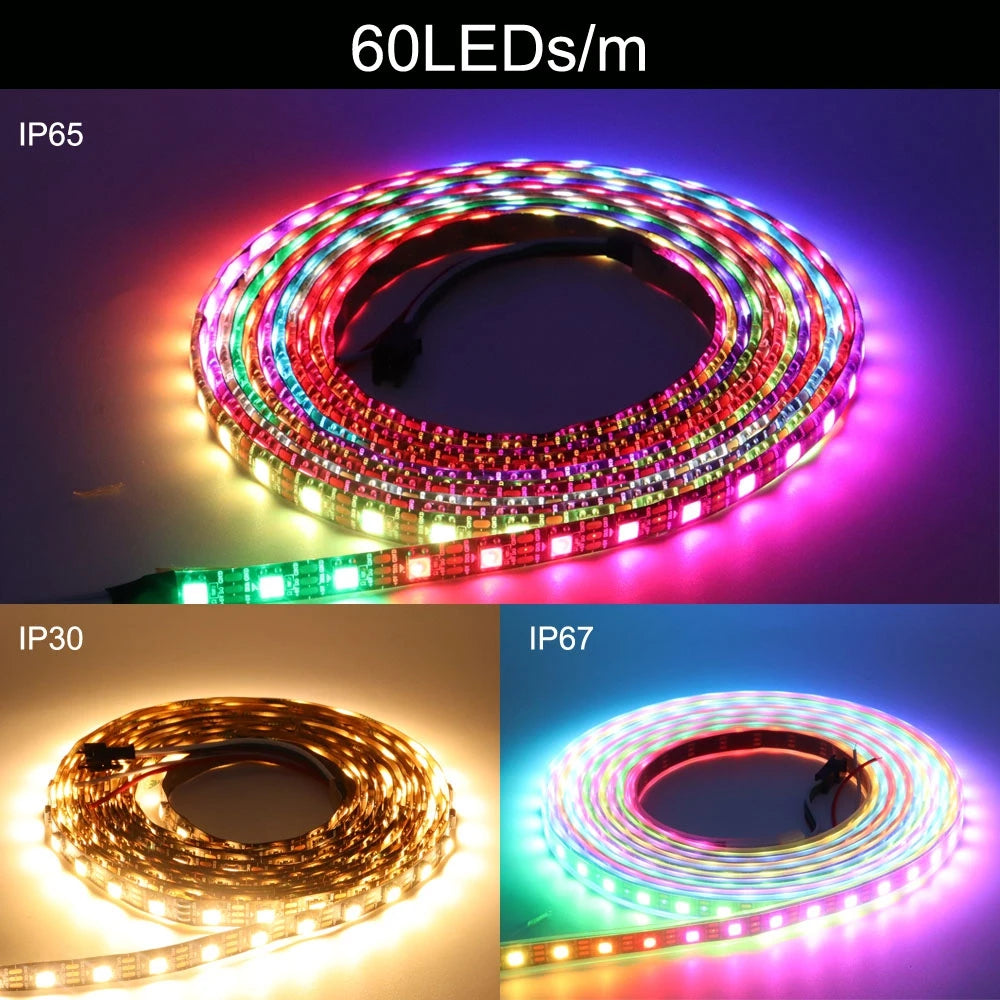

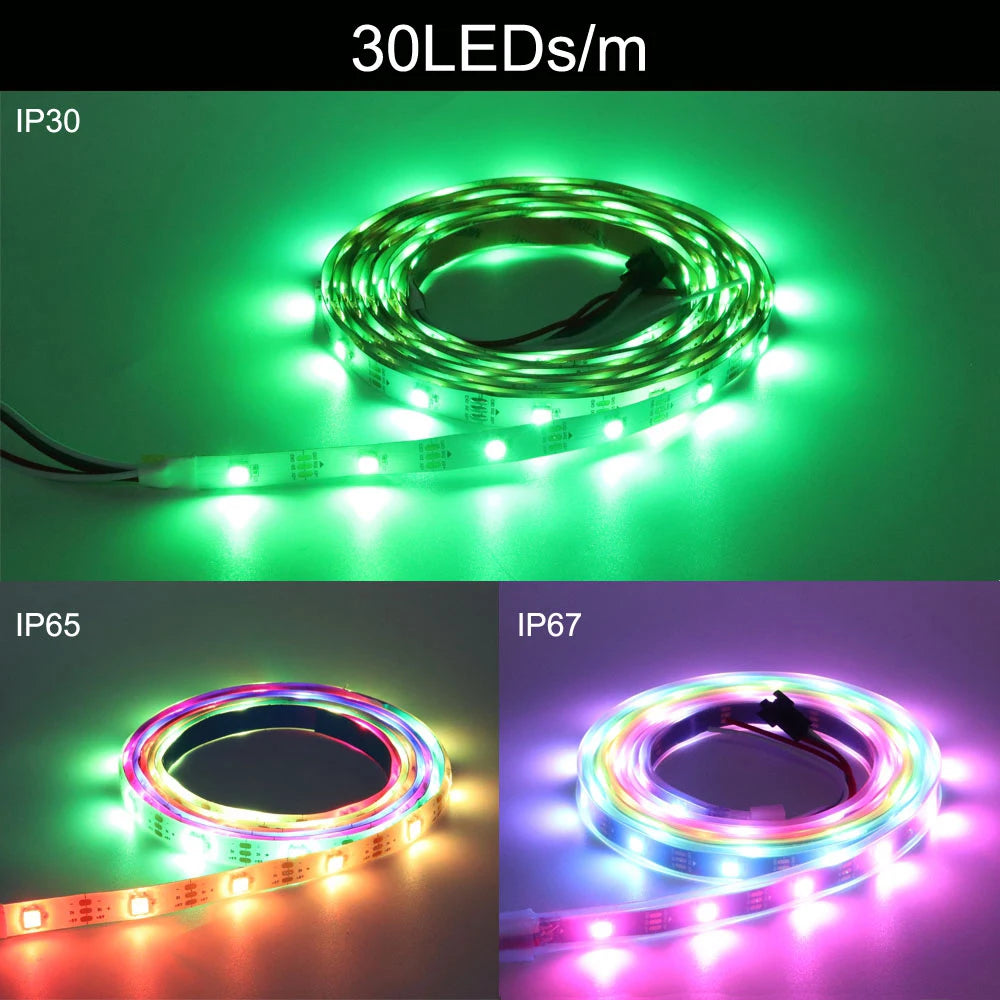

30Leds/m----6Watt/meter

60Leds/m----12Watt/meter

74Leds/m----14.8Watt/meter

96Leds/m----19.8Watt/meter

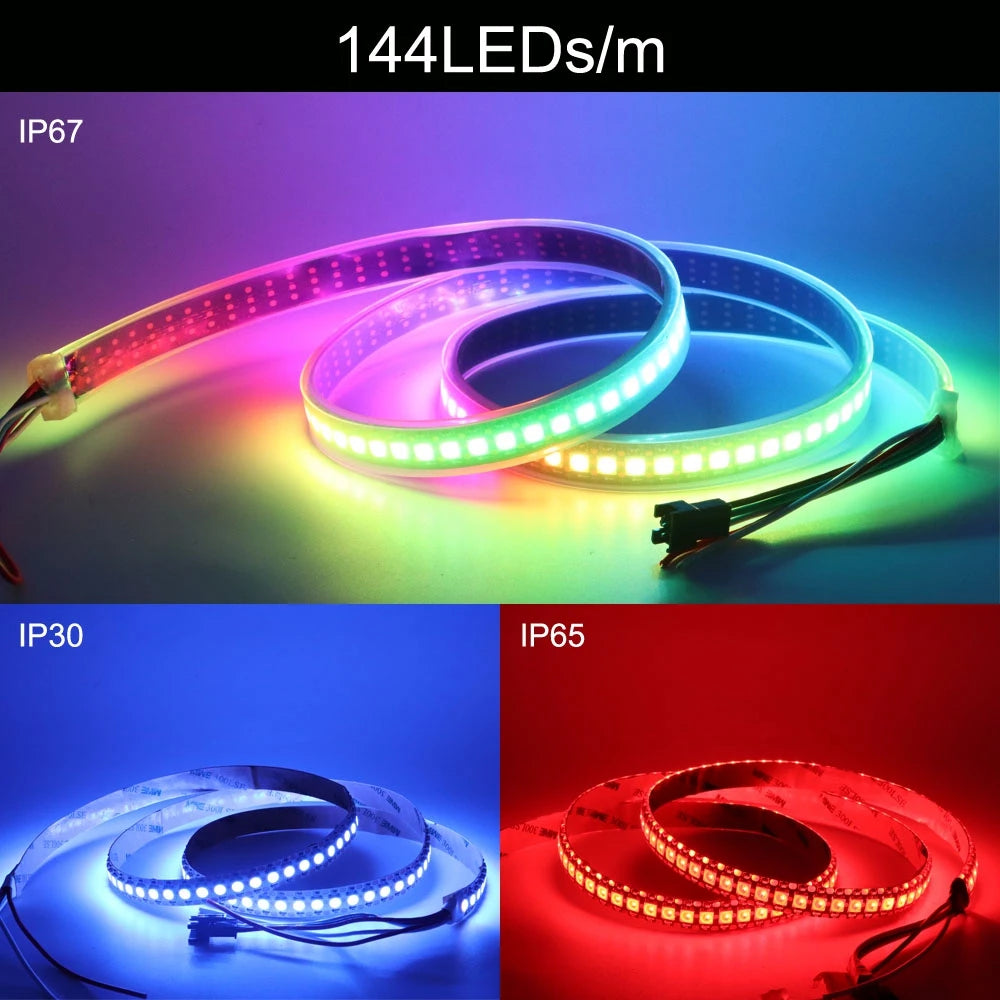

144Leds/m----28.8Watt/meter

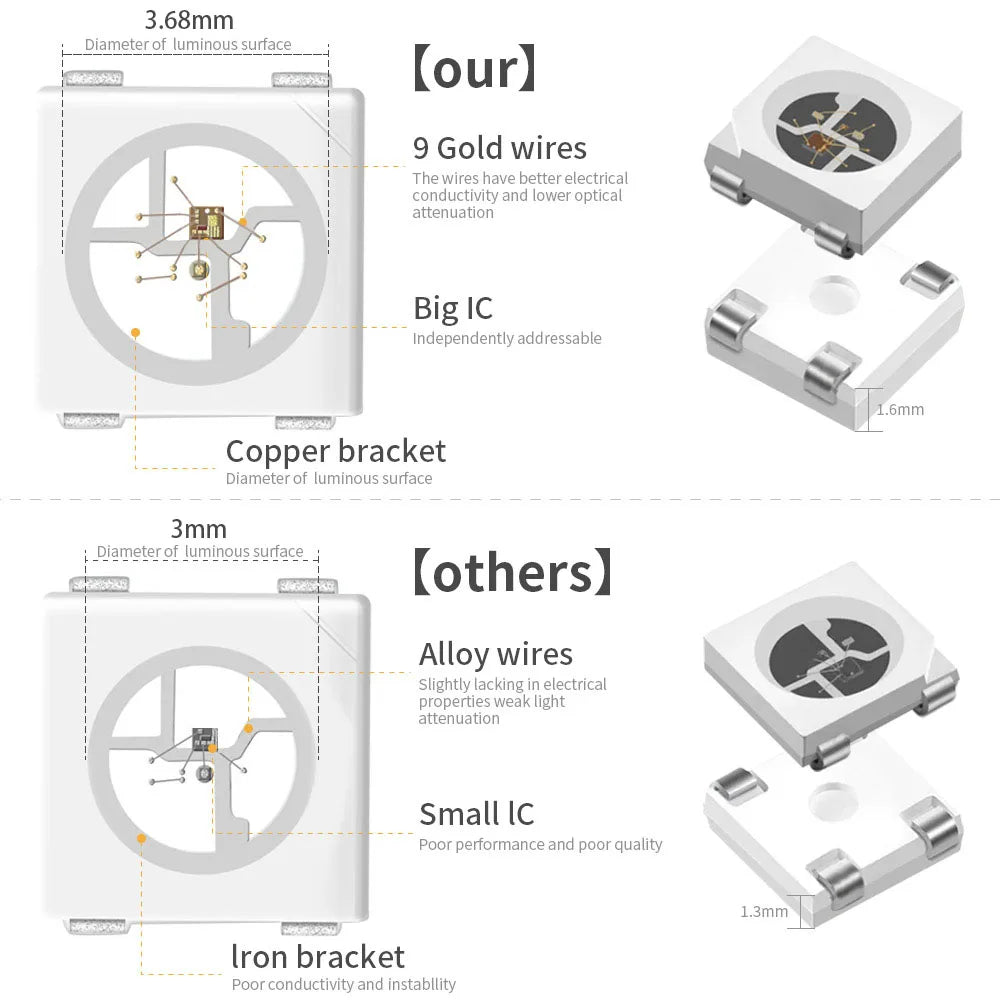

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip
